Beschreibung

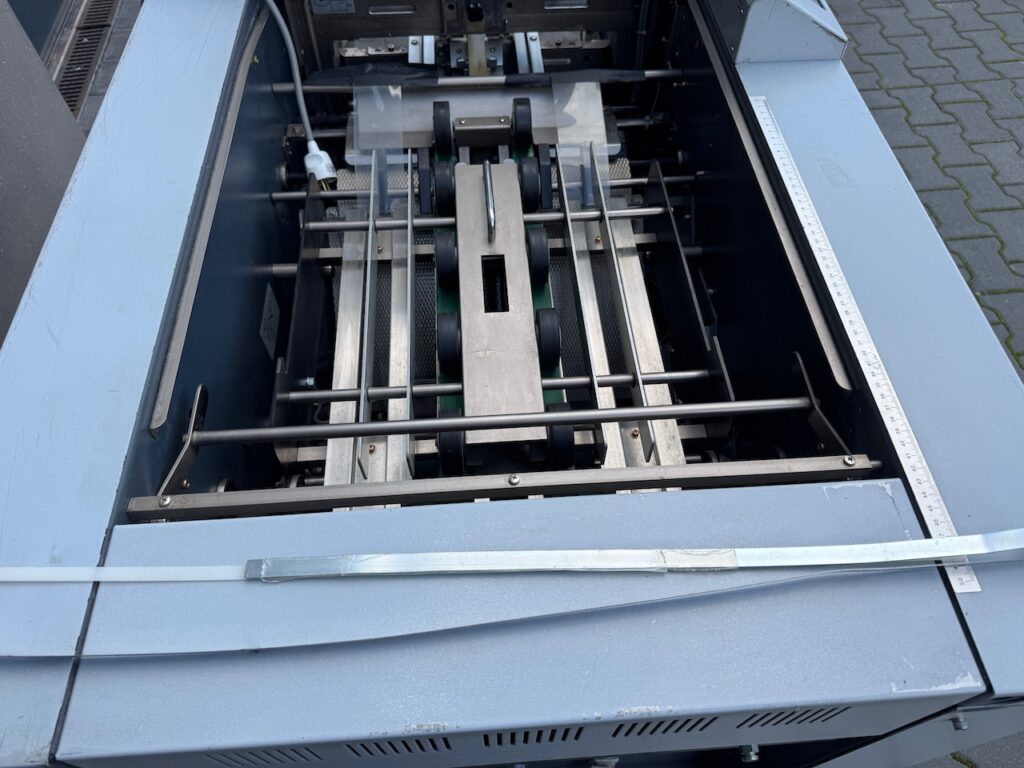

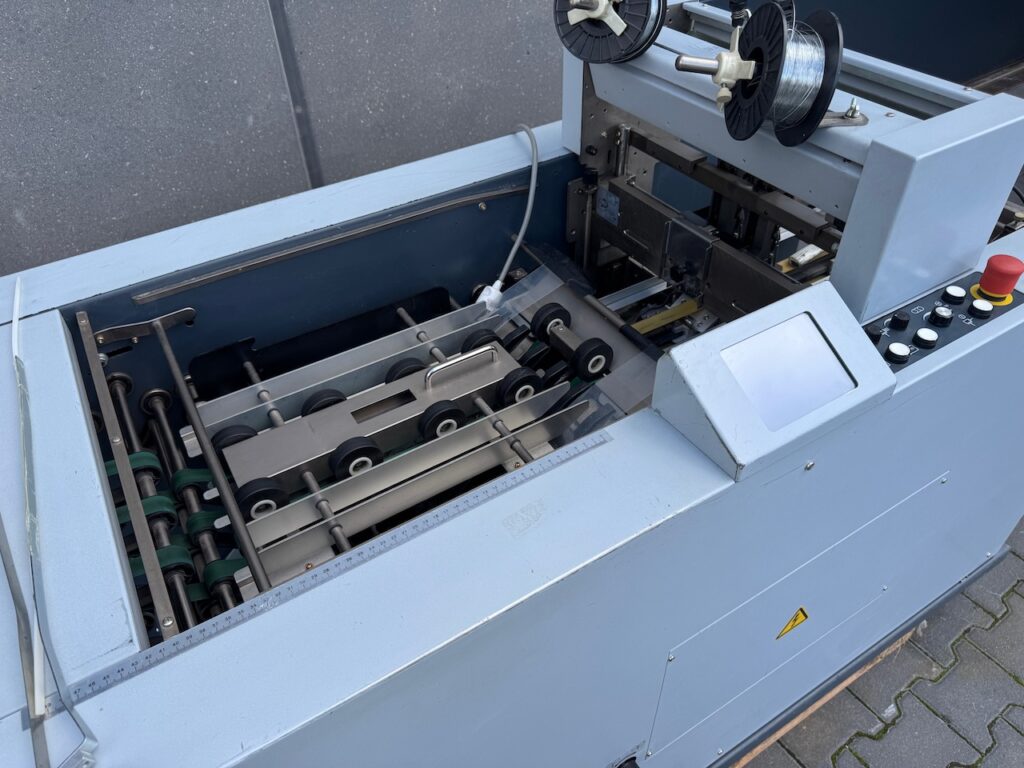

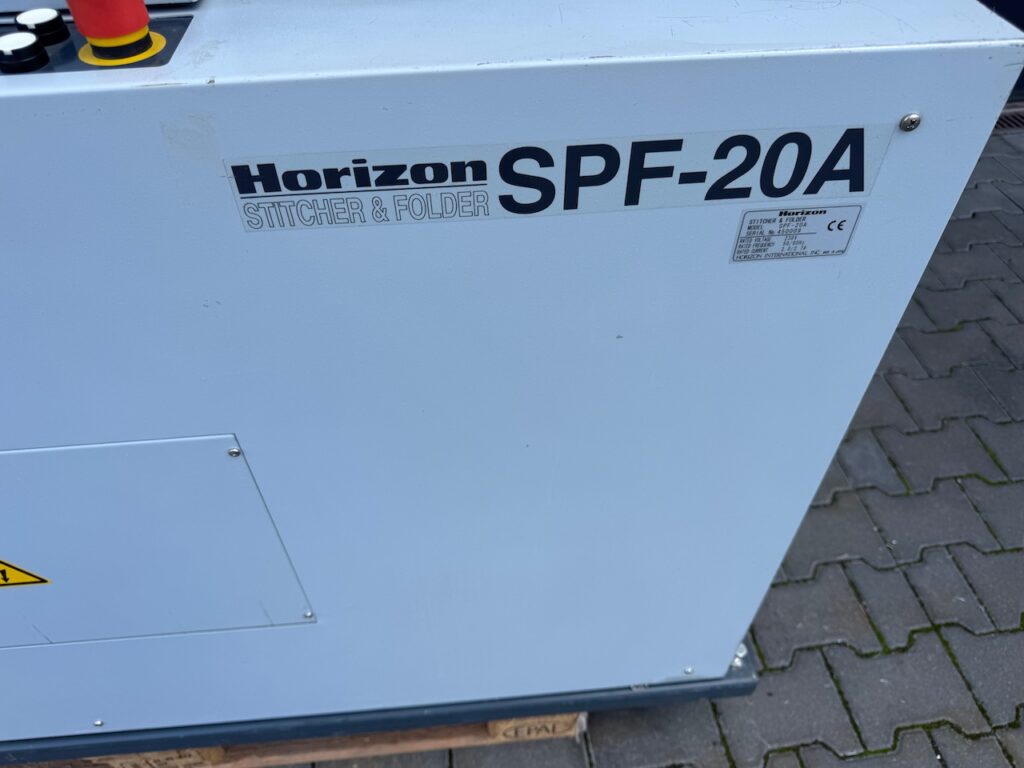

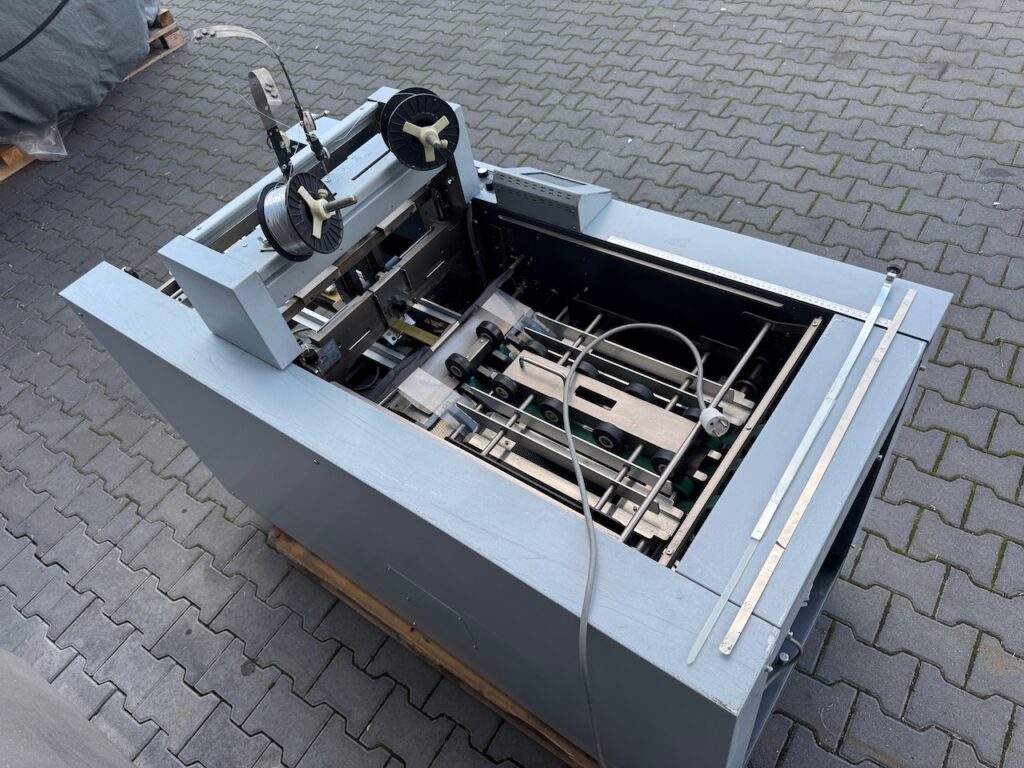

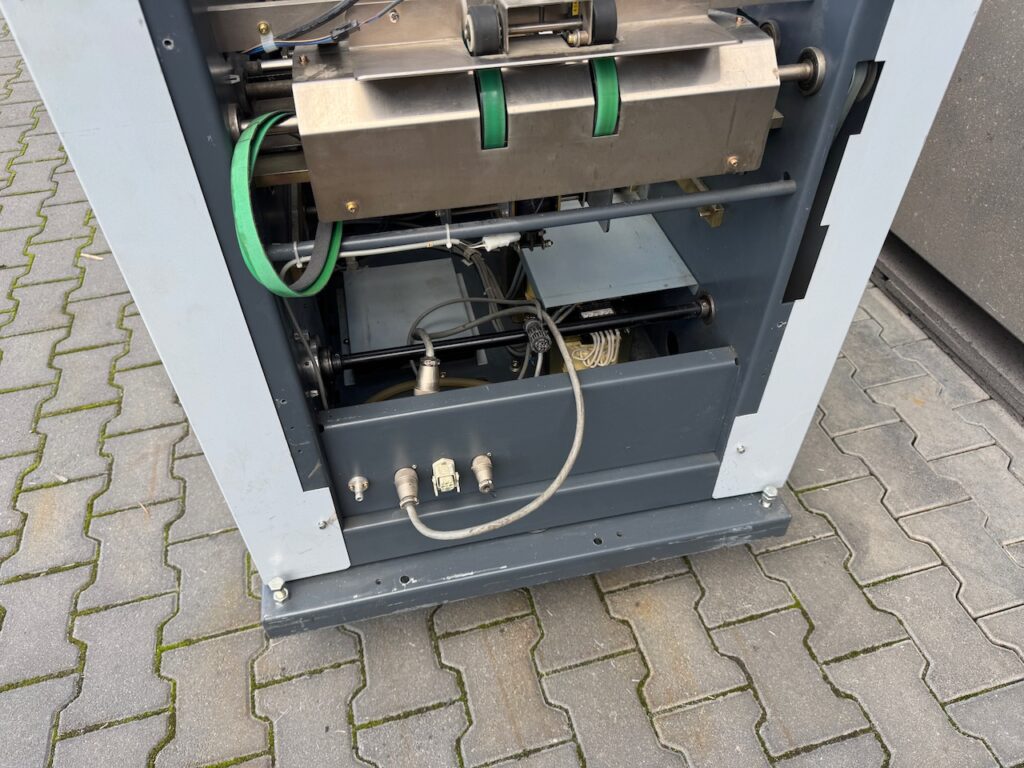

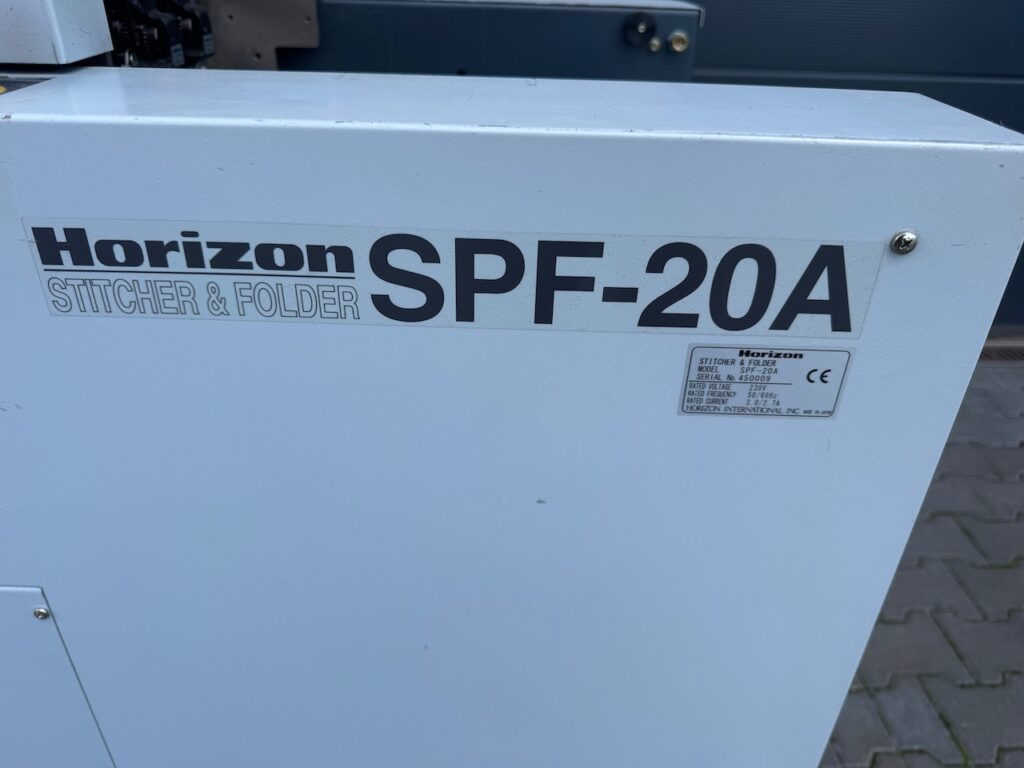

Heft und Falzmodul Horizon SPF 20a
BJ: 2007
+ in-line stitching & folding unit SPF-20A

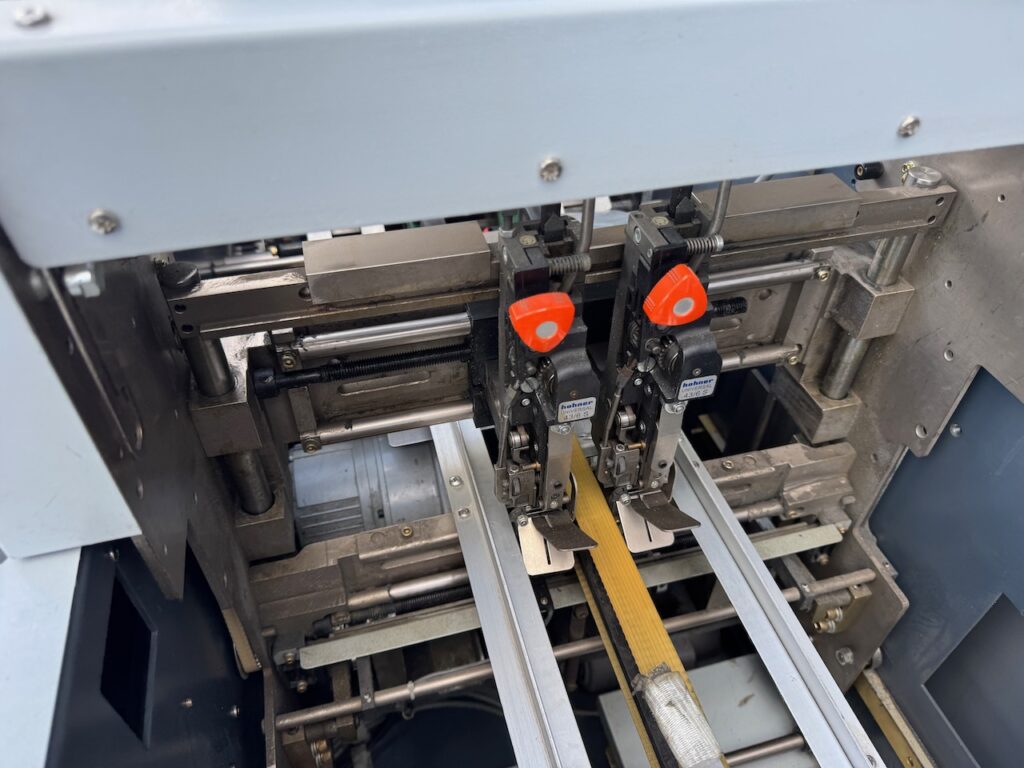

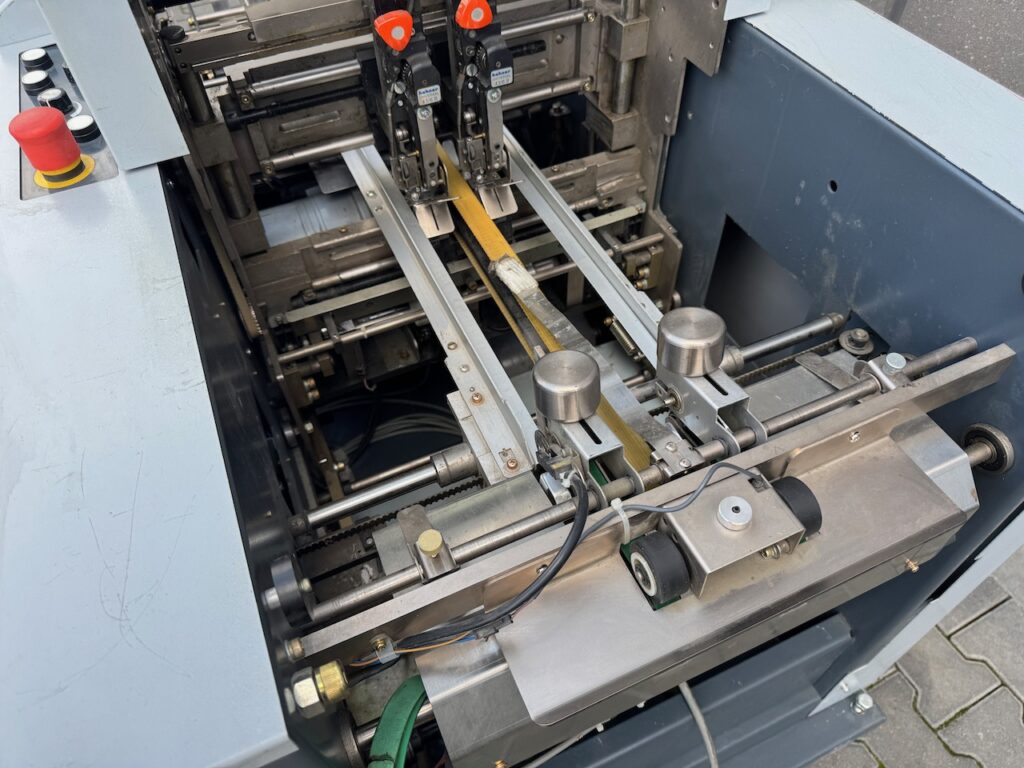

– with 2 HÖHNER 48/5 stitching heads,
– Stitching the collated sheets and folding the set in half to form booklets,
– Max thickness : 4 mm (stitching only) / 2 mm (stitch & fold),
– sheet size from 120×180 mm to 350×500 mm,
– finish size from 90×120 mm to 250×350 mm,
– stitch distance: 73-160 mm,
– standard wire diameter 0.5 mm,
– production speed: max.3200 booklets/h (A4/finish),
– power consumption: 450 W,
– dimensions : 271 x 81 x 110 cm,
– weight: 490kg
– books and tools
Sehr guter Zustand. Produzierte ca. 4 Mio. Broschüren
Verfügbarkeit: sofort.
